HW-C6462
Intel Elkhart Lake Pentium/Celeron CPU
Supports 6*COM, 4*USB3.0, 6*USB2.0, 1*Gigabit LAN
Supports 1*LVDS， 1*HDMI, 1*VGA(Support triple display simultaneously)
1*Mini-PCIe, Support Msata
1*M.2, Support NVME SSD
DC 12V Power Input
컨텐츠 정보
본문
| SYSTEM | |
|---|---|
| Processor | Intel® Celeron® J6412 Base Frequency 2.0G, Quad-core, TDP 10W |
| Memory | DDR4-3200,1*SO-DIMM, up to 32 GB |
| Storage | 1 * SATA3.0 7P Connector/M.2 Connector 1 * mSATA（3.0 |
| Display | Support triple display simultaneously： 1 * VGA: max resolution up to 1920*1200@60Hz 1 * LVDS/eDP: LVDS, resolution up to 1920x1200@60Hz eDP, resolution up to 4096x2160@60Hz 1 * HDMI: resolution up to 4096x2160@24Hz |
| Expansion Interface | 1 * Mini-PCIe (mSATA supported with Wifi/4G
selectable) 1 * M.2(NVME/5G optional) |
| Ethernet | 1 * Intel® 2.5Gbps PCIe Ethernet Controller, RJ45 |
| Audio | Realtek® HDA Codec, with MIC/Line-out and
Amplifier 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out/MIC 2in1 Phone Jack |
| COM | 4* RS232(4*Header) 2* RS232/RS485(Header) |

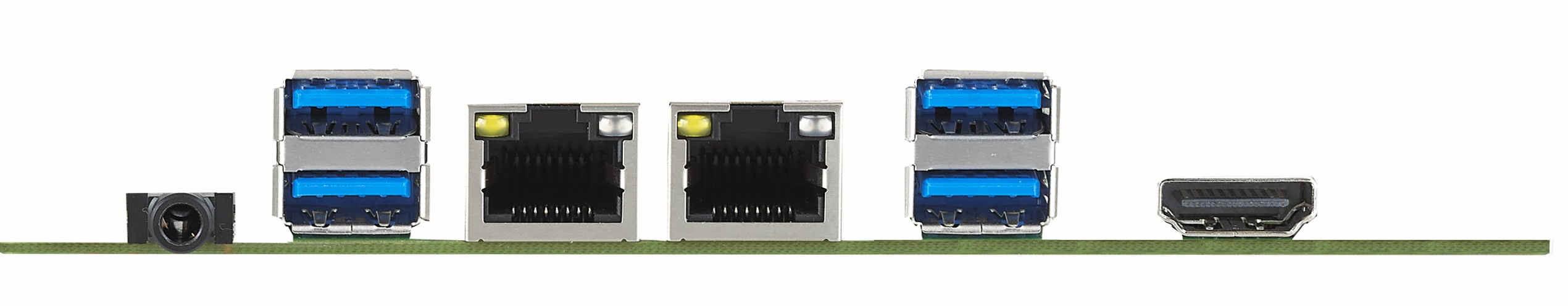

| USB | 4 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 4 * USB2.0 (Internal, Header) |
| Other Ports | 1 * PS/2 Header 1 * VGA Header 1 * Micro SIM Card Slot 1 * SYS FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper 1 * DC out Header |
