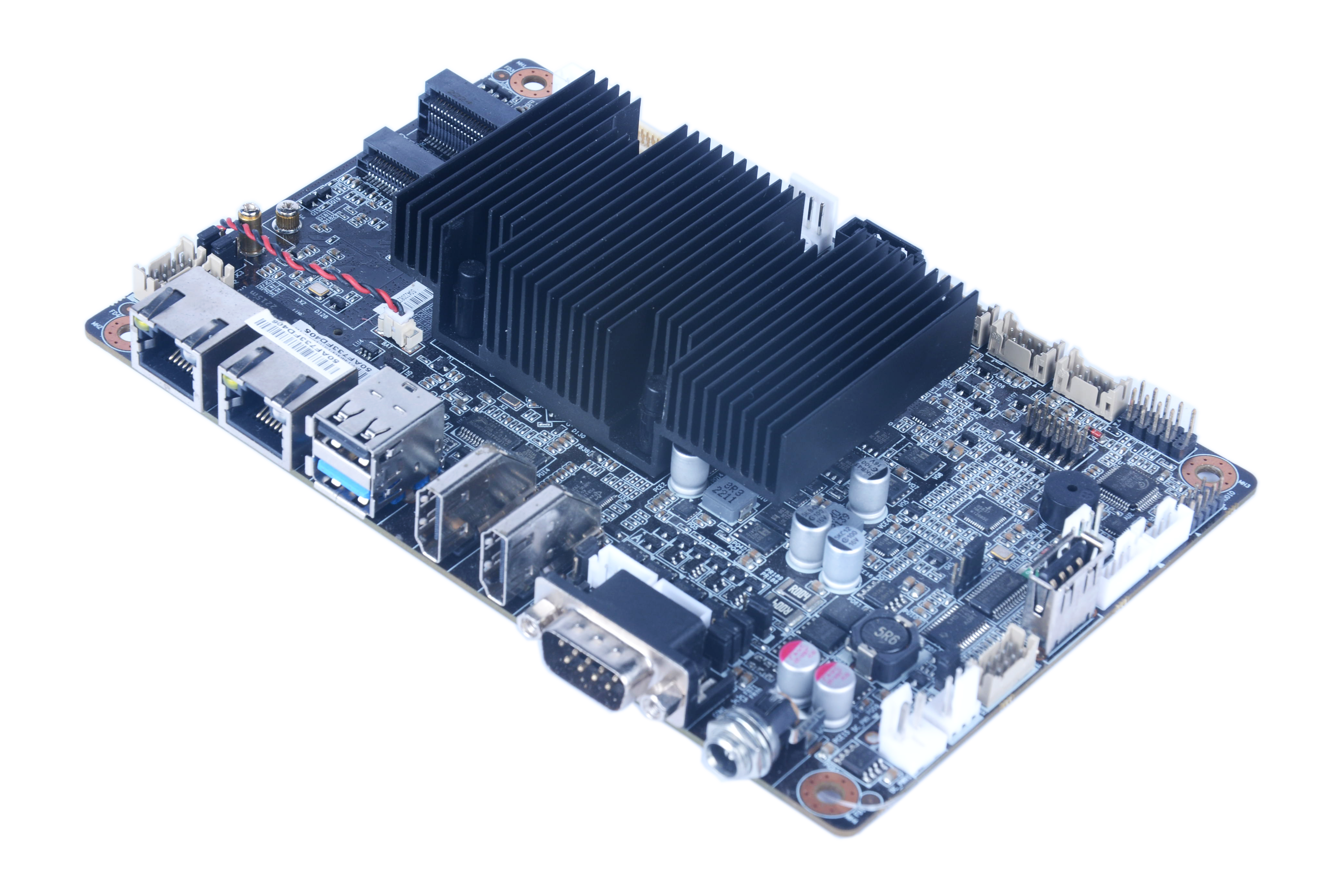

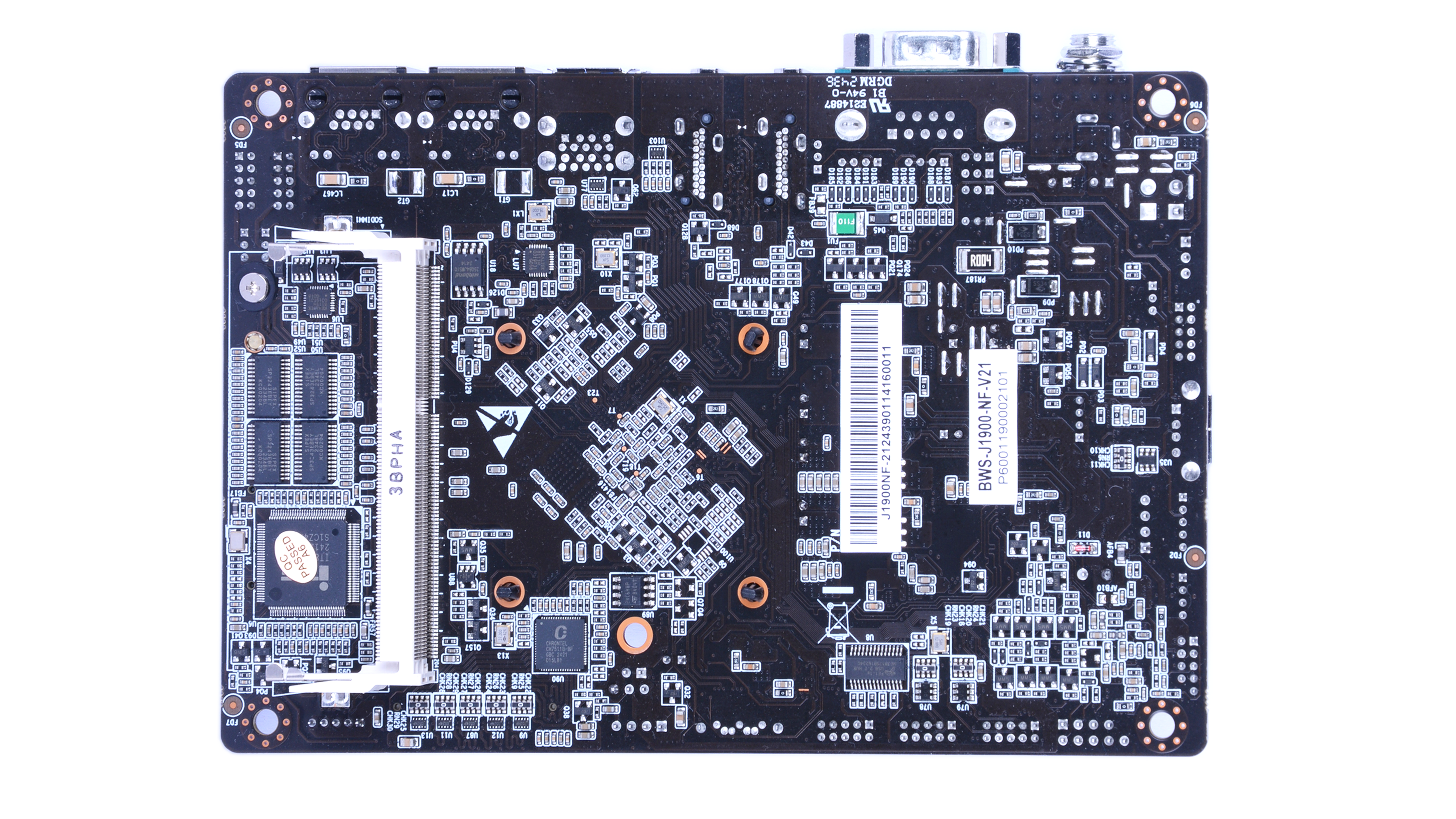

BWS-J1900-NF
Medical industry.Traffic industry, Advertising Machine,Financial industry,
Intel Baytrail Platform, J1900 CPU, 2.0GHz, 4Cores
Supports 2 x Display HDMI1+HDMI2/LVDS,
Supports 2 x 10/100/1000M LAN adapter
Supports 9 x USB2.0, 1 x USB3.0
Supports 6 x COMs, 1 x SATAII, 1 x MSATA , 1 x WIFI ,
Supports HD Audio , 1 x line out, 1 x line in,1x MIC,4ohm &2w Power amplifier
One 204-pin SODIMM up to 8GB, DDR3L 1333 MHz
컨텐츠 정보
본문
| CPU | |
|---|---|
| CPU | Intel Baytrail J1900 2.0GHz- 2.4 GHz |
| Instruction Set | 64bit |
| Lithography | 22nm |
| Memory | |
| Type | SODIMM DDR3L No ECC ,Supoort 1333 MHz |
| Channel | Single |
| Max Memory Size | 8GB |
| Graphics | |
| Graphics | Intel HD Graphics |
| Displays Supported | Independent dual display |
| Audio | |
| ALC269 HD Audio | x1 line out,x1 line in ,x1 MIC,4ohm&2W Power amplifier |
| Ethernet | |
| RTL8111F | x2 10/100/1000M BASET LAN |
| Internal Connector | |
| MSATA | x1 MINIPCIE |
| SATA | x1 7PIN SATA |
| WIFI | x1 Half length MINIPCIE |
| LVDS | x1 2x20 Header Box,Max resolution 1920*1200 |
| COM | x3 2x5 Header Box COM2-4(RS232) Powered 5V(Optional) |
| COM | x2 1x4 Header Box COM5-COM6 (RS-422/RS-485) |
| USB | x3 2x5 Header Box (support 6* USB2.0) |
| USB | x1 1x5 Header Box and Vertical USB2.0 port(support 2* USB2.0) |
| GPIO | x1 2x6 DuPont Header ,8*independent Programing GPIO |
| Audio | x1 line out,x1 line in,x1 MIC |
| SPK | x1 4ohm&2W Power amplifier |

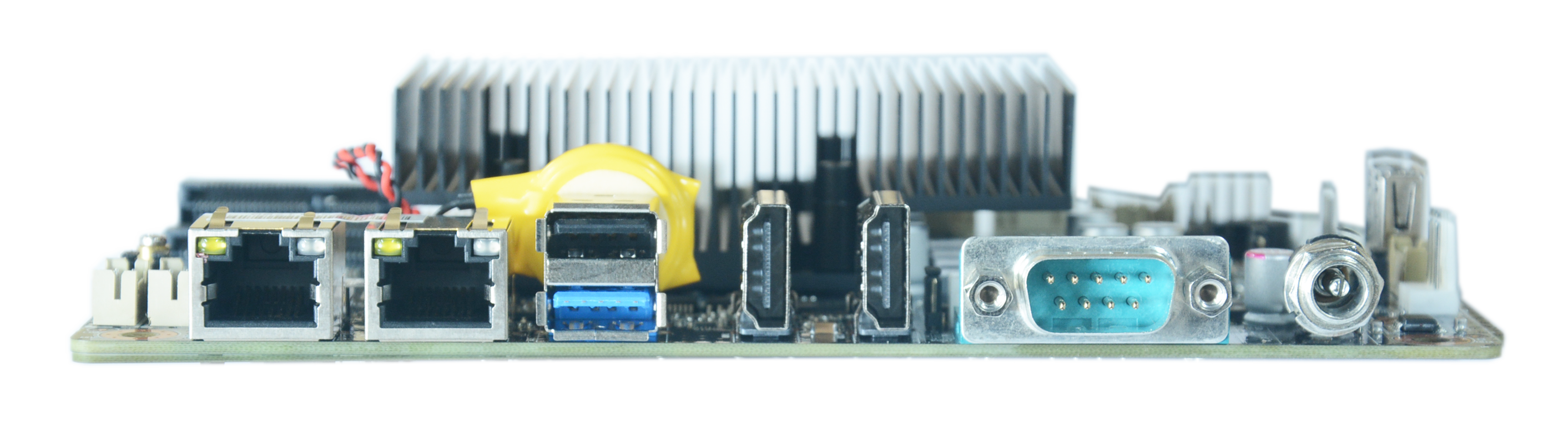

| I/0 | |
| Input DC connector | x2 1xDC jack ,1xPower 2Pin Wafer |
| COM | x1 DB9 Com1 Powered 5V (Optional) |
| USB | x2 1xUSB3.0 and 1xUSB2.0 |
| RJ45 | x2 Single RJ45 |
| HDMI | x2 Standard HDMI, Max resolution 1920*1080 |
| BIOS | |
| Vender | AMI |
| ACPI | Supported |
| Power | |
| POWER Brick | 9V-24V DC POWER Brick |
| Dimensions | |
| PCB | 165*110MM |
| Requirements Environment | |
| Operation | -10℃~+60℃，10%~95% RTH |
| Storeage | -40℃~+85℃，10%~95% RTH |
