HW-AE126-FLH
Intel Elkhart Lake J6412 CPU
Supports 6*COM, 2*USB3.0, 8*USB2.0, 1*1000M LAN
1*LVDS, 1*HDMI, 1*VGA(Support triple display simultaneously)
2*Mini-PCIe,Support mSATA and Wifi1*M.2Supports SSD
Mini-ITX, DC 12V Power Input
컨텐츠 정보
본문
| SYSTEM | |
|---|---|
| Processor | Intel Elkhart Lake J6412 CPU |
| Memory | DDR4-3200,1*SO-DIMM, up to 32 GB |
| Storage | 1 * mSATA/1 * M.2 (Support NGFF SSD or NVME SSD) |
| Display | 1*LVDS,1*HDMI,1*VGA |
| Expansion Interface | 2*Mini-PCIe (1*mSATA4G optional, 1*Wifi) 1*M.2(NVME SSD/SATA SSD) |
| Ethernet | 1*Realtek® 1000M PCIe Ethernet Controller, RJ45 |
| Audio | Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 3.5mm Jack |
| COM | 5 * RS232+1*RS232/RS485 (6*Header) |

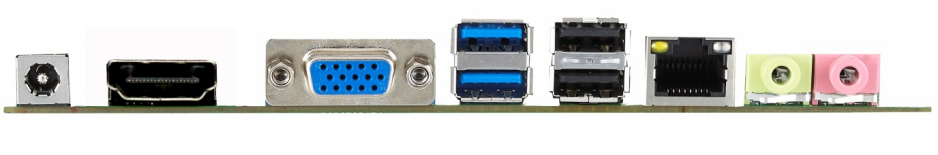

| USB | 2 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) |
| Other Ports | 1 * Cash Drawer Header 1 * LPT Header 1 * VGA Header 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper |
