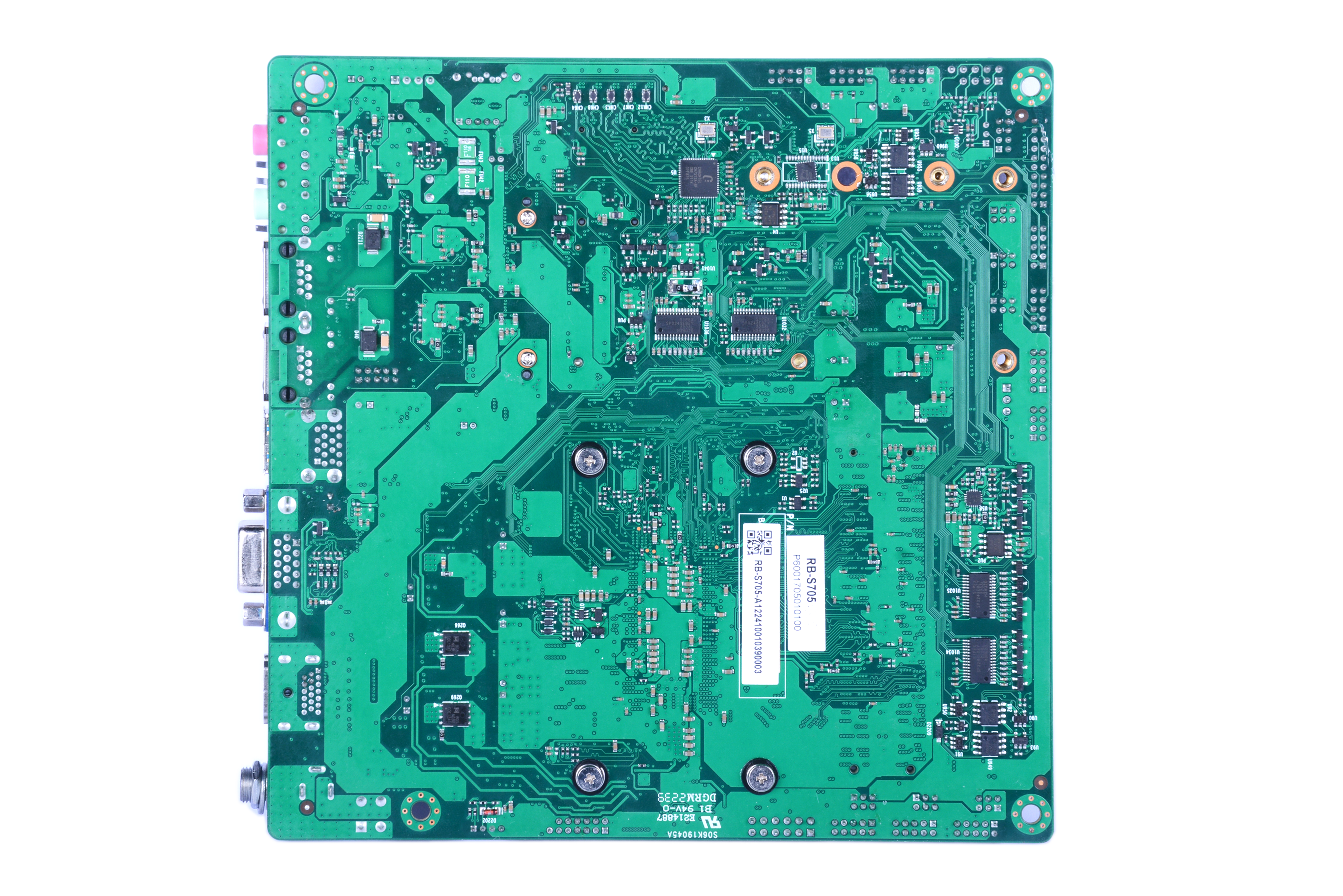

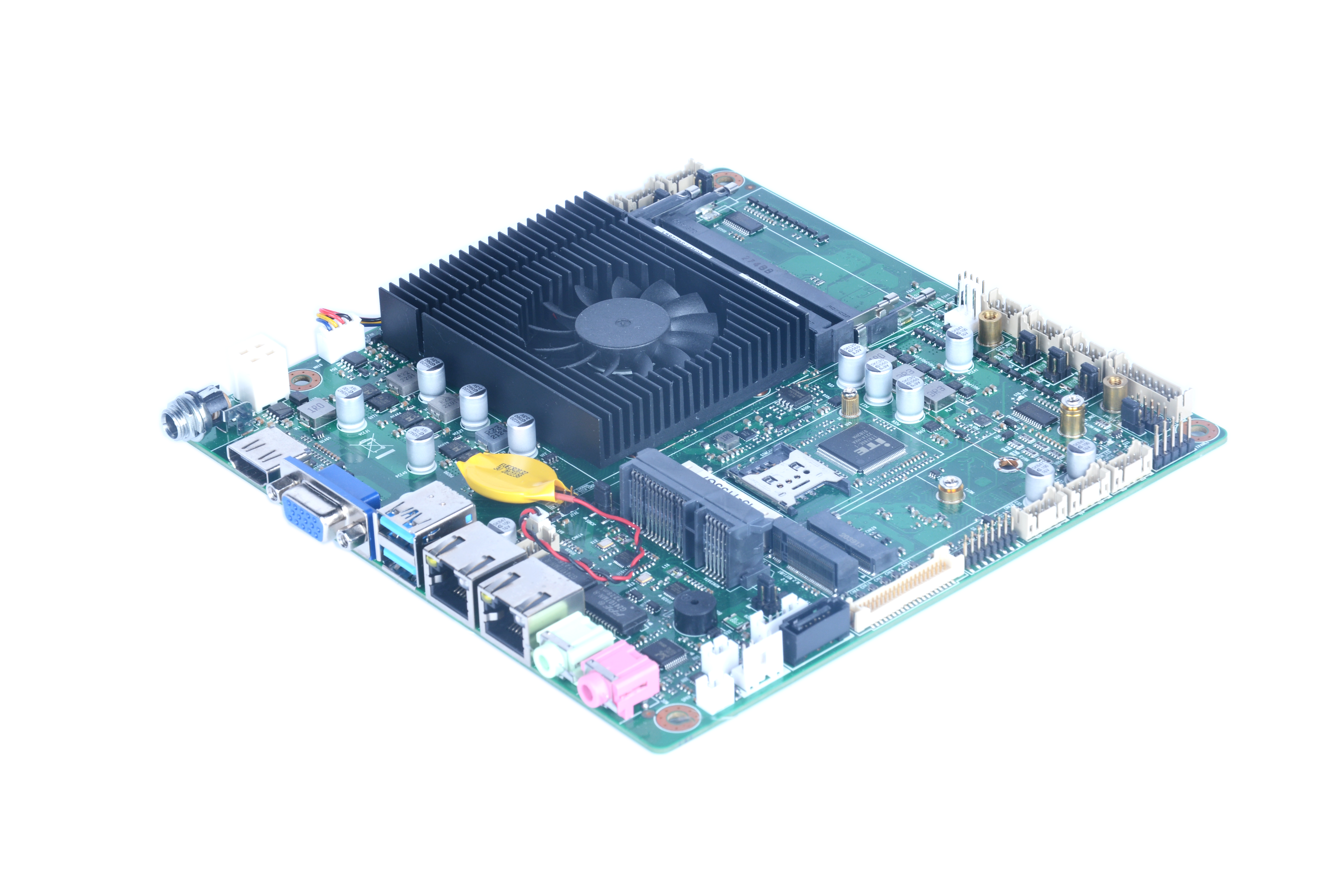

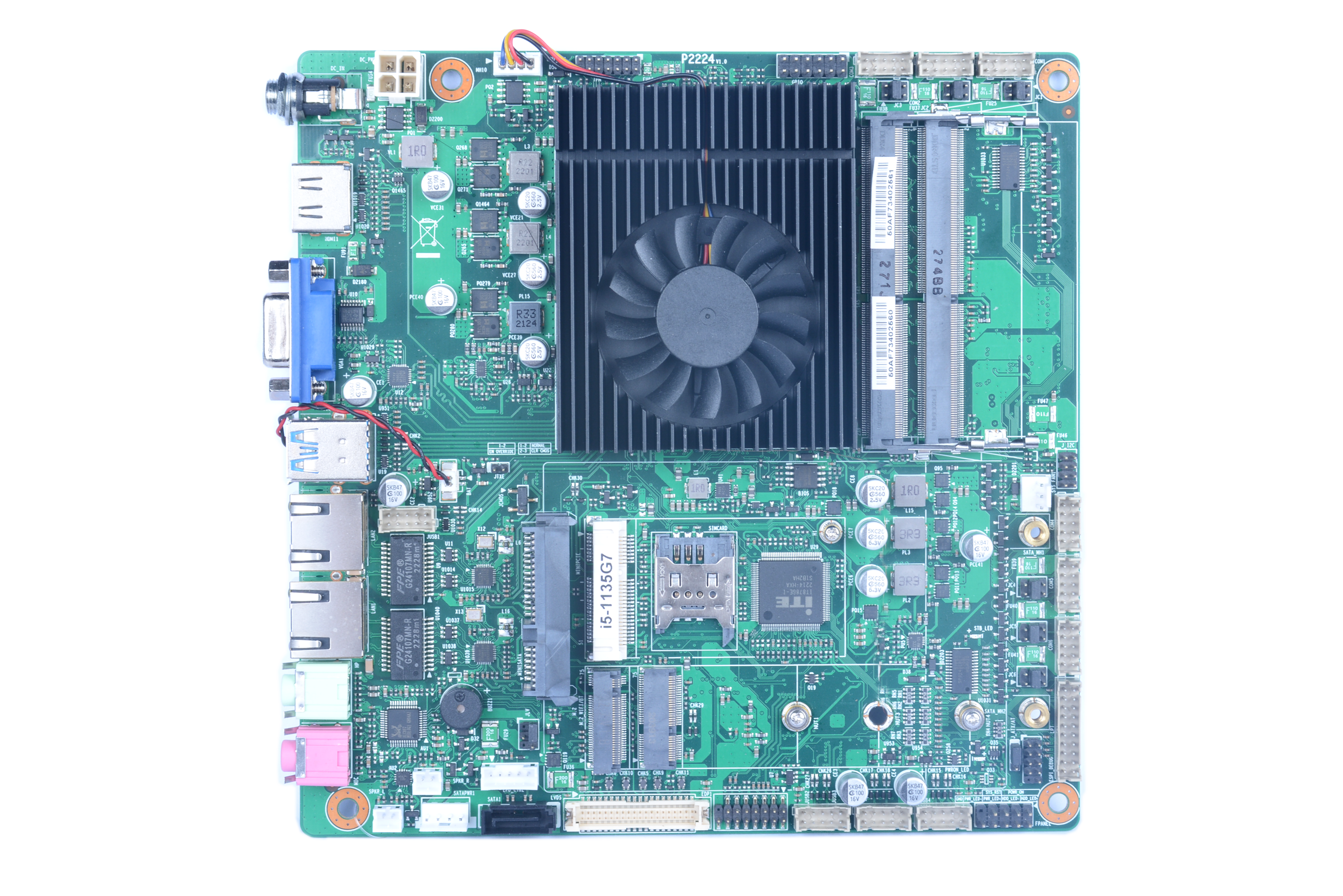

RB-S705
Medical industry.Traffic industry, Advertising Machine,Financial industry,
Intel Tiger lake :i3-1115G4 i5-1135G7
Supports 4 x Display HDMI/VGA/LVDS/EDP
Supports 2 x 10/100/1000M LAN adapter
Supports 3 x USB3.0, 6 x USB2.0
Supports 6 x COM, 1xLPT, 2 x SATAIII, 1xPCIE M.2,1x M.2 NGFF,1 x minipcie wifi &4G
Support HD Audio (1 x line out, 1 x mic in,3W-2ch amp)
Dual 260-pin SODIMM up to 32GB, DDR4 3200MHZ
컨텐츠 정보
본문
| CPU | |
|---|---|
| CPU | Intel Tiger lake：i3-1115G4、i5-1135G7 |
| Instruction Set | 64bit |
| Lithography | 10nm |
| Memory | |
| Type | SODIMM DDR4 No ECC,Support 3200MHZ |
| Channel | Dual |
| Max Memory Size | 32GB |
| Graphics | |
| Graphics | Intel HD Graphics |
| Displays Supported | 4 Display Port HDMI/VGA/ LVDS/EDP |
| Audio | |
| ALC662 HDAudio | x1 line out ,x1mic in,2ch-3w amp |
| Ethernet | |
| RTL8111H | x2 10/100/1000M BASET LAN |
| Internal I/O | |
| M.2 | x1 standardM.2 PCIE SSD(UP PCIE 4X) |
| NGFF | x1 standardM.2 NGFF WIFI |
| SATA | x2 standard sata connector(one 7pin and the other 15+7pin) |
| MINIPCIE | x1 standardMinipcie WIFI & 4G card |
| USB | x3 2x5 header(supports 6*USB2.0)+x1 2x5 header box (USB3.0*1) |
| COM | x6 COM1-COM4(RS232)/COM5-COM6(RS232/RS422/RS485) |
| LPT | x1 2x13 header |
| Dispaly | x1 2x20 LVDS wafer +x1 2x8 EDP wafer |
| GPIO | x1 2x6 DuPont Header ,8*independent Programing GPIO |
| TPM | x1 2x7 header |
| I/0 | |
| DC connector | x1 DC JACK connector(option one ATX-4Pin connector) |
| HDMI | x1 Support HDMI I/O |
| VGA | x1 Standard DB15 VGAport |
| USB | x2 2xPorts USB3.0 |
| RJ45 | x2 Single RJ45 |
| Audio | x1 Suport Line out |
| Audio | x1 Suport Line out |
| BIOS | |
| Vender | AMI |
| ACPI | Supported |
| Power | |
| POWER Brick | 12V DCPOWER Brick |
| Dimensions | |
| PCB | 170*170MM |
| Requirements Environment | |
| Operation | -10℃~+60℃，10%~95% RTH |
| Storeage | -40℃~+85℃，10%~95% RTH |
